Steel Electric Wire Cable Surface Automatic Polishing Machine
| Place of Origin | China |
|---|---|
| Brand Name | Trancar Industries |
| Certification | CE/ISO |
| Model Number | TCM-WR |
| Minimum Order Quantity | 1 set |
| Price | USD 15000-40000 Dollar per set |
| Packaging Details | Custom design plywood box |
| Delivery Time | 35 work days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability | 20 sets per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Steel Electric Wire Wire Cable Surface Automatic Polishing Machine | Dimension | 2650x1050x1300mm |
|---|---|---|---|
| Weight | 2100 Kg | Voltage | 380V 400V 415V Etc |
| Color Option | Blue/White/Yellow/Grey Etc | Usage | Linishing Polishing Steel Wire Surface |
| Condition | 100% New | Polishing Speed | Max.2m/s |
| Warranty | 18 Month | After-sales Service | Video Support/Engineer Oversea Service |
| Provide | ODM & OEM | Control System | PLC Program |
| Highlight | Electric Wire Automatic Polishing Machine,Cable Surface Automatic Polishing Machine,Steel automatic grinding machine |
||
Product Description
Steel electric wire wire cable surface automatic polishing machine

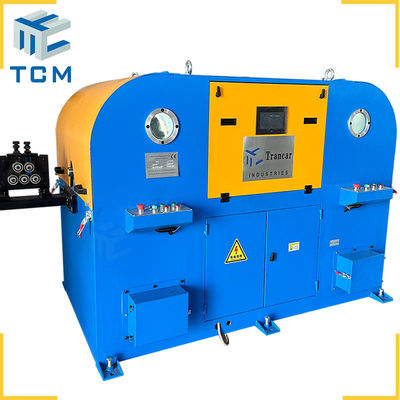

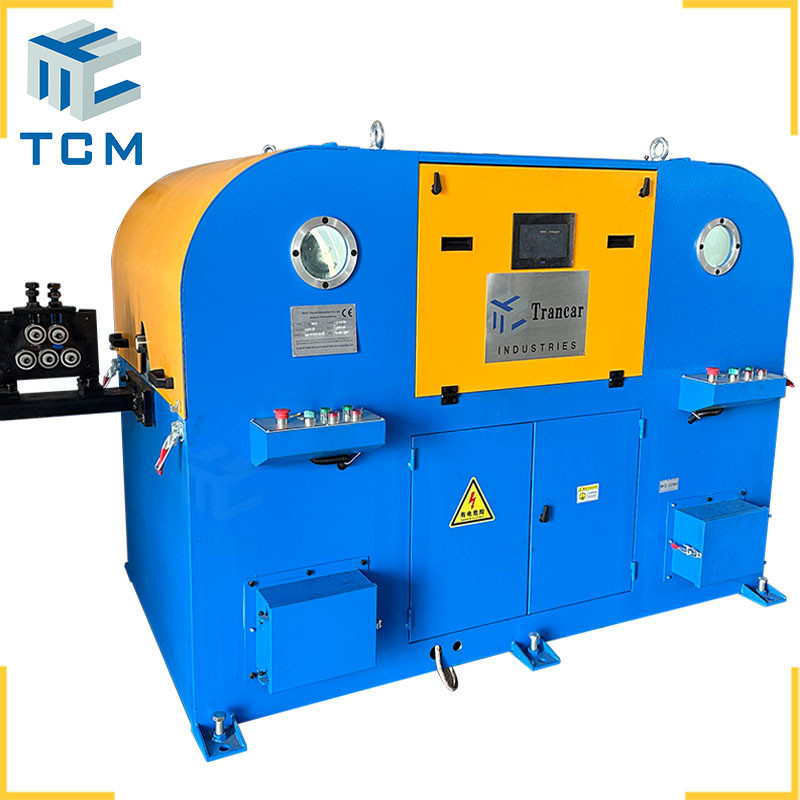

Trancar Industries Model TCM-WR automatic steel wire cable polishing machine is design for stainless steel metal wire rods’ surface grinding and buffing.This machine adopts mechanical method to process the surface of metal wire rod to grind,polish and rust,replace the original pickling, environmental protection and energy saving, meet the requirements of mass production,achieve high production efficiency and stable and reliable product quality.

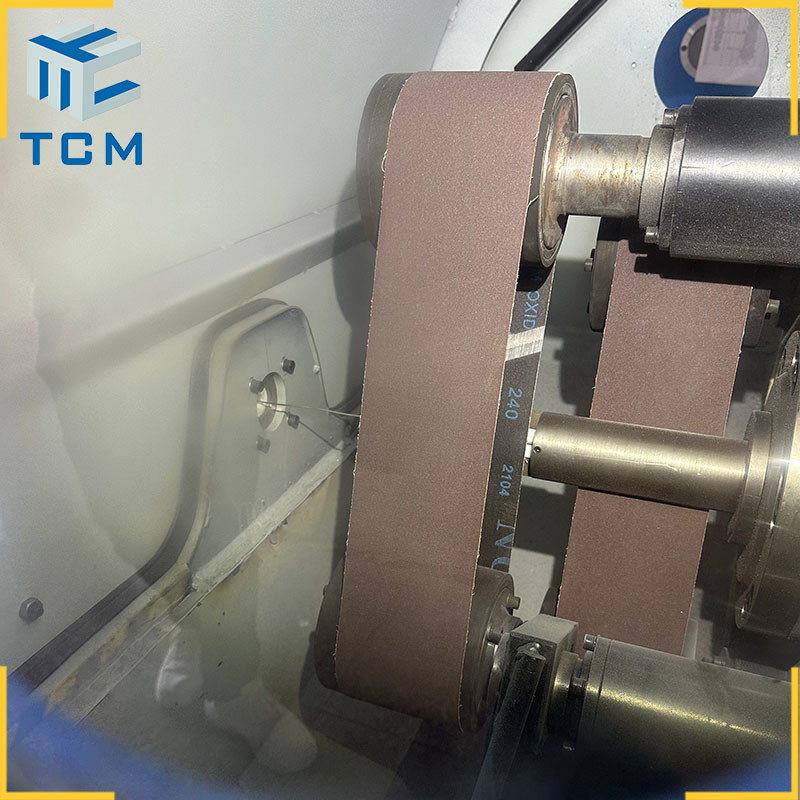

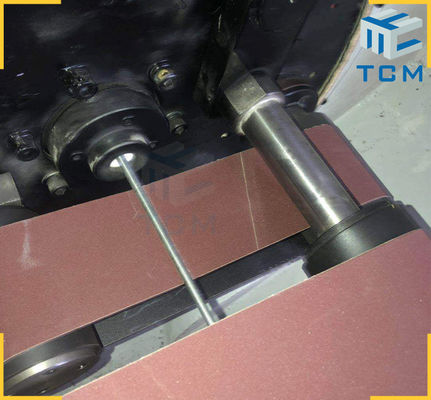

This belt sander removes oxide scale or oxide film and its particles from the wire.Through the four fixed rollers (single side) and two tension rollers supported by the turntable,two high-speed rotating abrasive belts are driven to polish,and the rotation speed of the turntable and the feed speed of the wire match each other.The thickness of the double-headed belt can be freely combined according to the product's finish requirements.Custom design service is available.
TCM-WR Steel Round Wire cable automatic linishing polishing machine parameter:
|
Normal configuration(customer design acceptable) |
||
|
Wire Rod Diameter |
1-5mm / 5-8mm / 8-16mm / 16-25mm |
|
|
Machine Dimension |
(L×W×H) 2650×1050×1300mm |
|
|
Abrasive Belts Size |
1600*500 mm / 1350*300mm / 1250*300mm etc |
|
|
Production Efficiency |
Polishing working speed |
120-200 m/h |
|
Input total Power |
35 kw |
|
|
Power Supply |
380V 415V / 50Hz 60HZ / 3p or Customization |
|
|
Machine Weight |
/ |
2100kg |
|
Color |
Grey/Green/Blue/Red/Yellow Custom design |
|
|
For option |
Dust Collection system is available during polishing. |
|
Trancar Industries stainless steel wire cable electric wire PLC automatic polishing machine linishing equipment packge and delivery:
Contact Trancar Industries for more ss wire cable automatic polishing machine and solutions,custom design service is available.
Steel wires cable automatic polishing machine use 4kw dust collecting system for your option:
