Automatic orbital round tube pipe TIG welding machine with CE from Trancar Industries China

  • Automatic orbital round tube pipe TIG welding machine with CE from Trancar Industries China
  • Automatic orbital round tube pipe TIG welding machine with CE from Trancar Industries China
  • Automatic orbital round tube pipe TIG welding machine with CE from Trancar Industries China
  • Automatic orbital round tube pipe TIG welding machine with CE from Trancar Industries China
  • Automatic orbital round tube pipe TIG welding machine with CE from Trancar Industries China
  • Automatic orbital round tube pipe TIG welding machine with CE from Trancar Industries China
Place of Origin China
Brand Name Trancar Industries
Certification CE/ISO
Model Number TCM-W
Minimum Order Quantity 1 set
Price USD 8500-30000 Dollar per set
Packaging Details Custom design plywood box
Delivery Time 10 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union
Supply Ability 60 sets per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Production Name Automatic Orbital Round Tube Pipe TIG Welding Machine Dimension 510x353x340 Mm
Weight 35 Kg Color Blue/Red/Grey
Condition 100% New Control System PLC
Warranty 1 Year Pipe Tube Diameter 6.35-165.8 Mm
Highlight

Automatic TIG welding machine

,

CE TIG welding machine
Leave a Message
Product Description

Automatic orbital round tube pipe TIG welding machine



automatic orbital tube welding machine is orbital weld heads for fusion (GTAW) welding of fittings, tubing and thin wall pipe.Ideal solution for welds in the food&dairy,pharmaceuticals,biotechnology,chemical,semiconductor industry and in all applications where space is very limited.Welds materials such as stainless steel(SS), titanium,hastelloy and other auto weldable alloys.During weld process,it is without wire feeding but with argon protection and tungsten insert(TIG) welding.



Product Features

1. Color contact operation interface: clear display of parameters for easy programming.

2. Siemens PLC control system: precise control of various output parameters to ensure equipment stability.

3. Dual cooling system: greatly improves the temporary load rate of the welding torch.

4. Automatic programming and manual programming functions: parameters can be generated with one click orm

    anually modified.

5. Easy to operate: lightweight, more efficient operation, safer high-altitude operation, suitable for beginners.

6. Exclusive patented technology for welding torch design: ensuring welding quality.

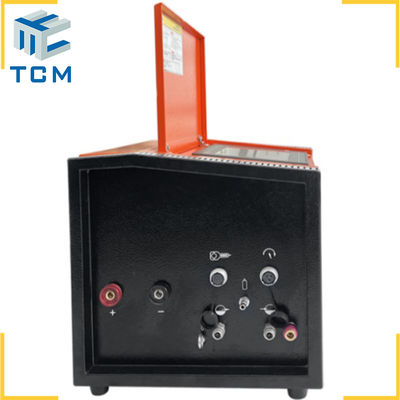

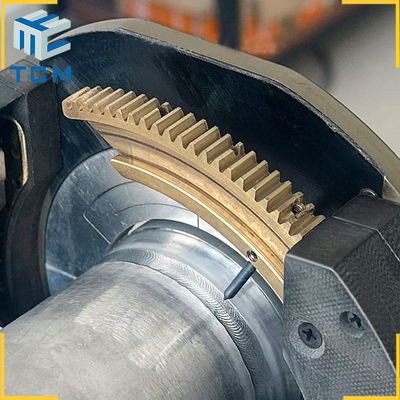

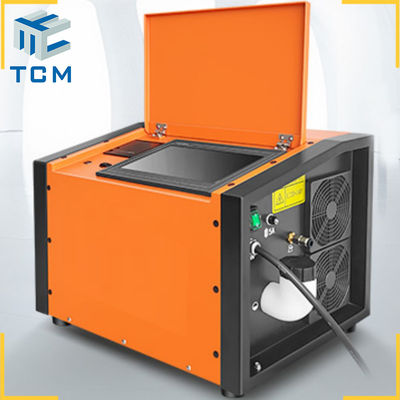

Automatic orbital round tube pipe TIG welding machine with CE from Trancar Industries China 0

Automatic orbital round tube pipe TIG welding machine with CE from Trancar Industries China 1

Orbital welder TIC welding machine main Parameter

Model TCM-20W
Protect function Overvoltage ,overload, leakage, arc failure and tungsten need short circuit protection ,missing detection
Duty cycle 220A 60%/155A 100%
Welding current 5~200A
Floating voltage 65V
Input Voltage AC 220V±10% 50Hz/60Hz
Power 4.5KVA
Welding gun cooling Built-in circulating water cooling
Screen 10 inch touch screen
Programmable memory 99
Partition free space 12
Insulation grade/Protection grade F/IP21
Control function Direct supply/impulse current/gas/rotary movement/auto/manual
Tank volume 4L
Weight 33Kgs

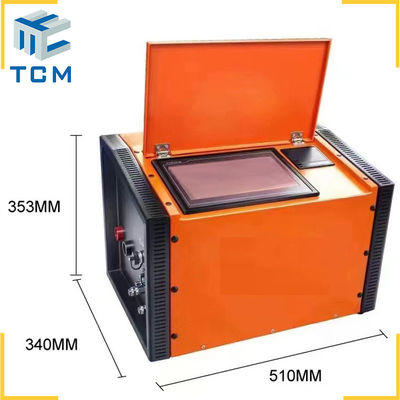

Machine size 510*353*340mm
Automatic orbital round tube pipe TIG welding machine package:

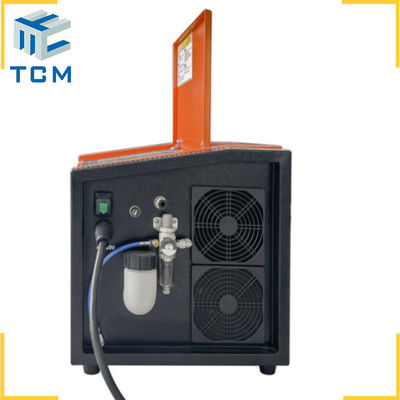

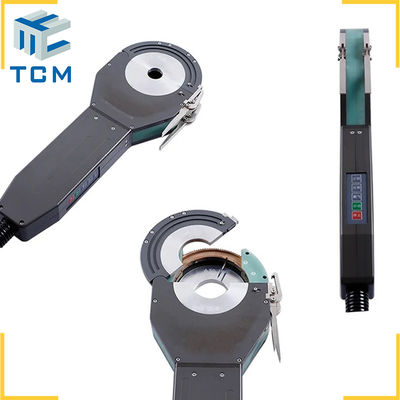

Automatic orbital round tube pipe TIG welding machine with CE from Trancar Industries China 2
Automatic orbital round tube pipe TIG welding machine with CE from Trancar Industries China 3
Contact Trancar Industries for more automatic welding machine & solutions:
Email-Contact@trancarindustries.com whatsapp:0086-13395652967
